Integrated Wiring
Product application
Transmission of voice, data and video signals
Suitable for all EA-level link applications, including ISDN, 10M Ethernet, 100M Fast Ethernet, Gigabit Ethernet, 10G Ethernet, 4/16/bit/s Token Ring, TP-PID/TPDDI 125Mbit/s, ATM155Mbit/s

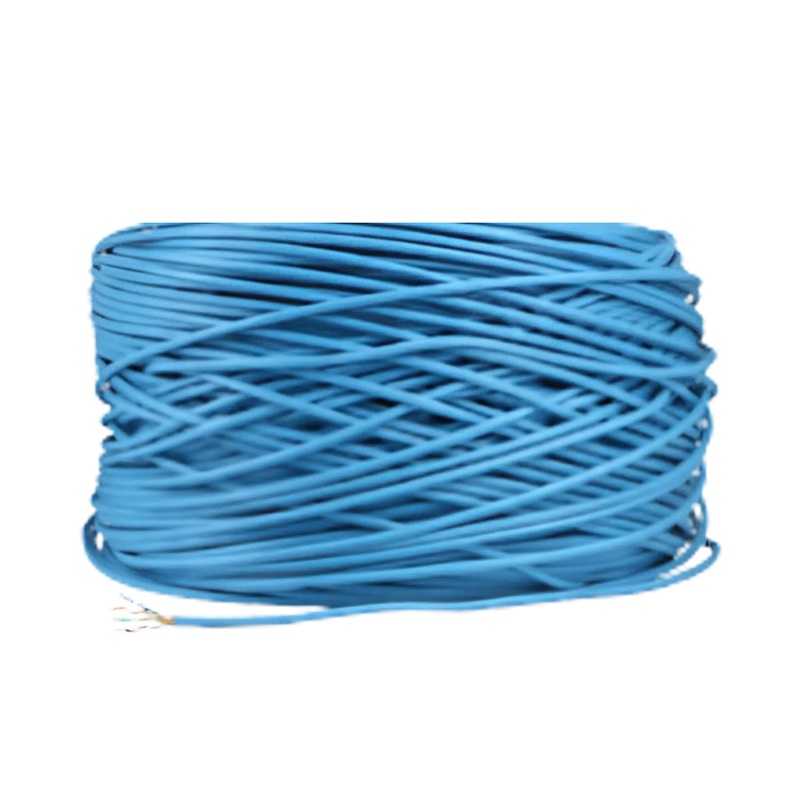

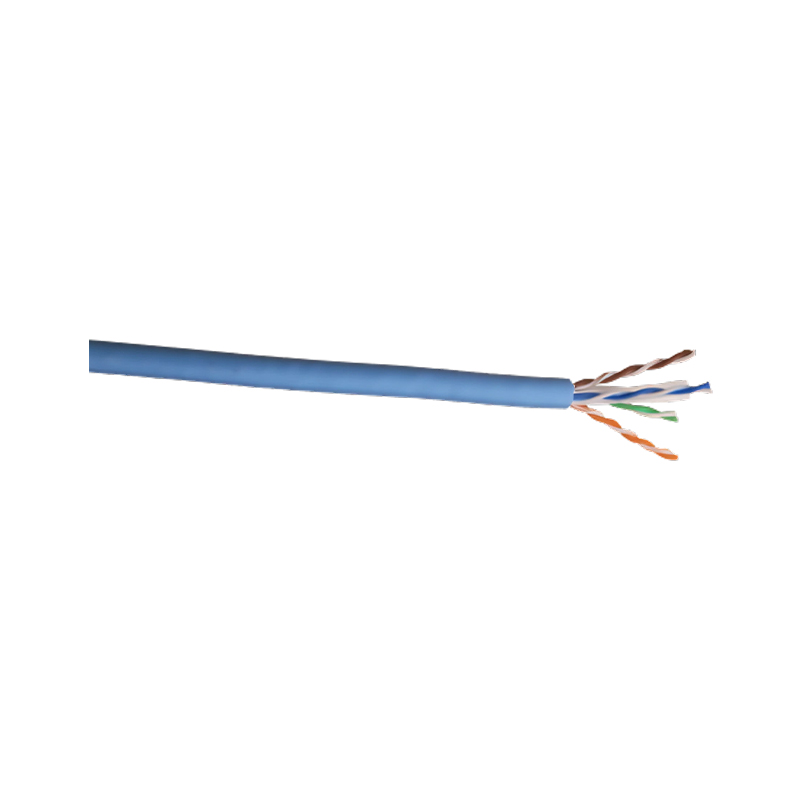

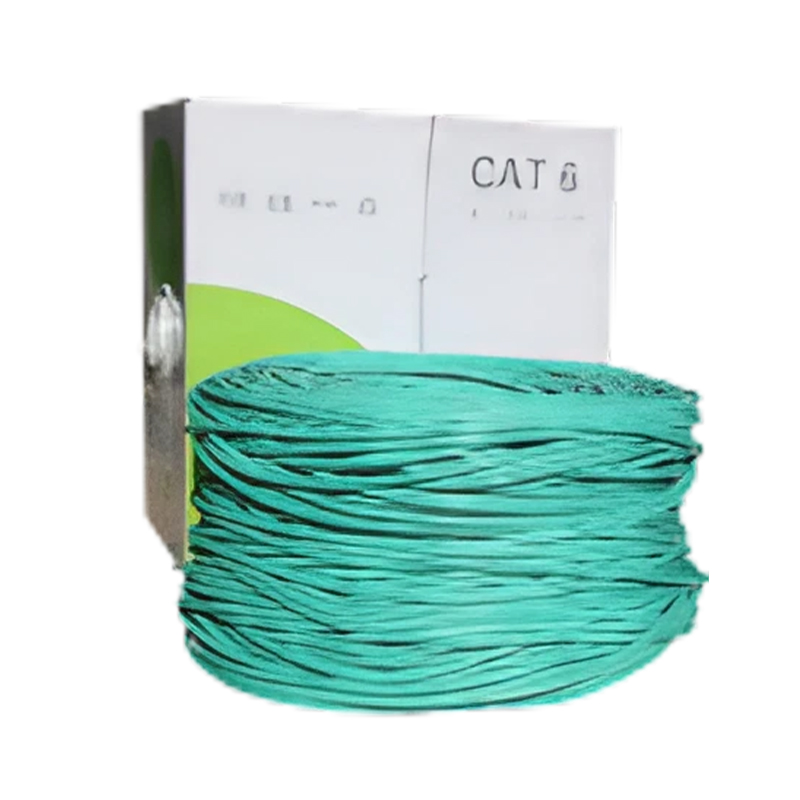

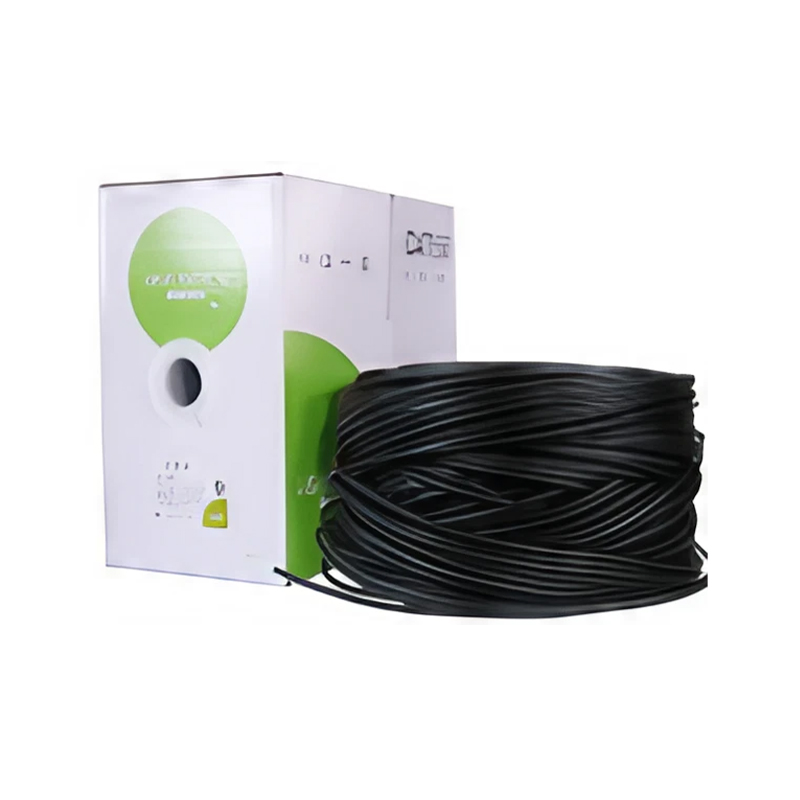

Cat.6A data copper cable with high-quality electrical and mechanical performance to meet high-end needs
Certified by CE, ROHS, FCC, REACH and the Ministry of Information Industry

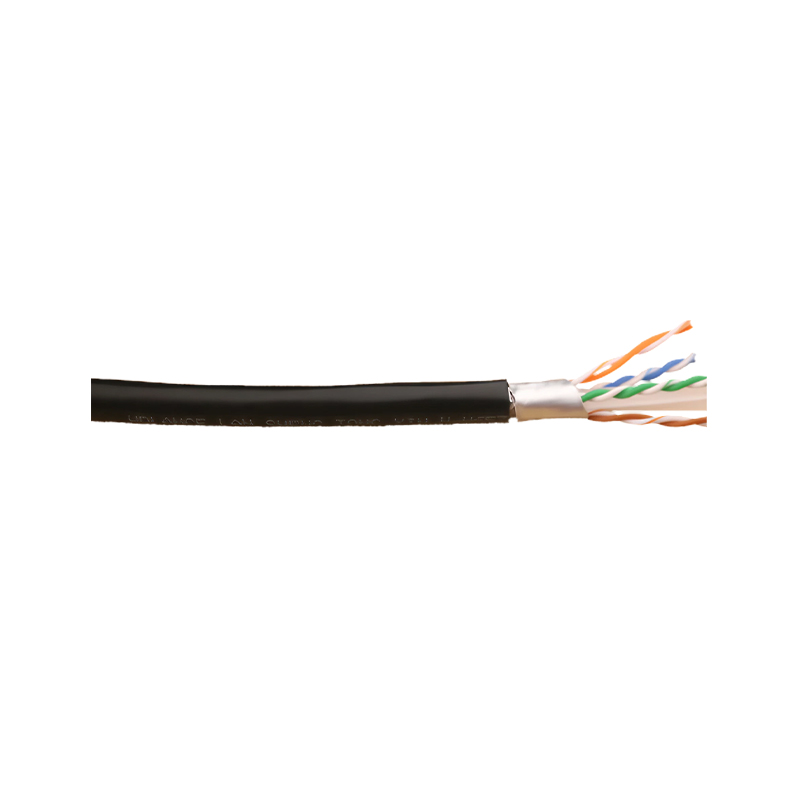

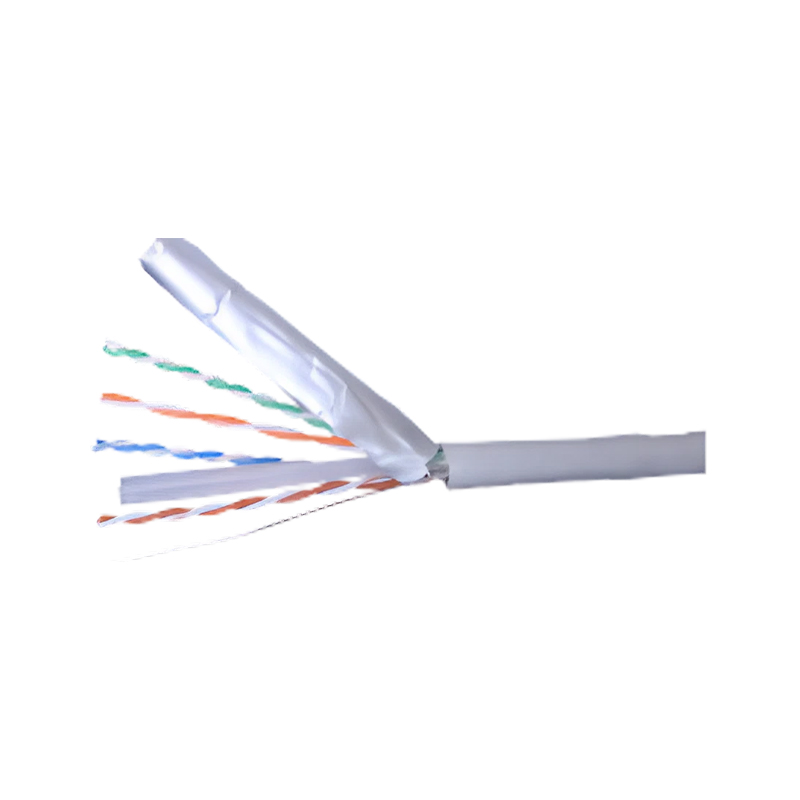

Adopting aluminum foil pair shielding and aluminum foil total shielding to achieve extremely good shielding effect against external electromagnetic interference and line-to-line electromagnetic interference
Bandwidth: ≥500MHz
Conductor material and diameter: oxygen-free round copper wire (purity 99.99%) 23AWG0.570.02mm
Sheath: Polyvinyl chloride (PVC)/Polyethylene (PE)/Low smoke zero halogen (WDZB1) and other options;
Electrical performance: Impedance
Working capacitance: (f=1-500MHz) 100±15% Ω
≤5.6nF/100 meters
Rated transmission rate (NVP): 76%
Insulation resistance: >5000M2/km
DC resistance of a single conductor: ≤7.52/100 meters
Physical properties: Outer sheath diameter
Bending radius when fixed: 7.7±0. 2mm
Bending radius when traction: > 33mm
Tensile strength: >65mm
Physical properties: ≤ 100N
Application standards: GB 50311-2016: IS0/IEC11801-2011: EIA/TIA 568C.2: YD/T 1019, etc.
